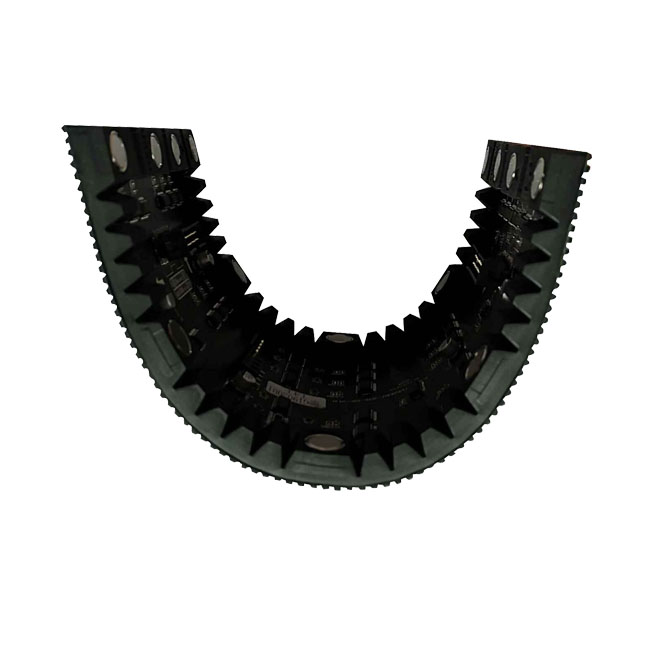

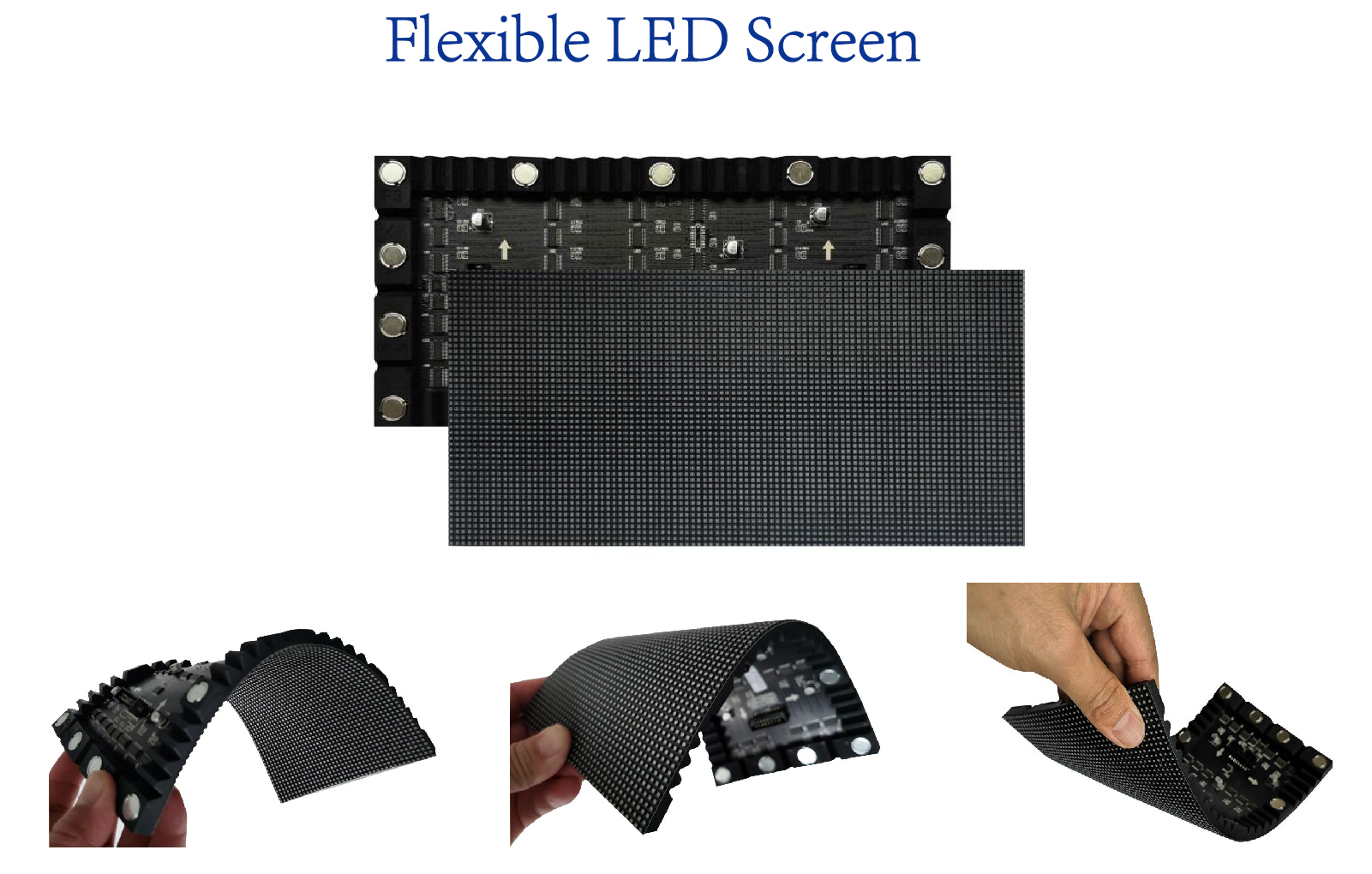

Flexible LED Screen

P1.56/P2/P2.5/P3/P4/P5/P6/P8/P10

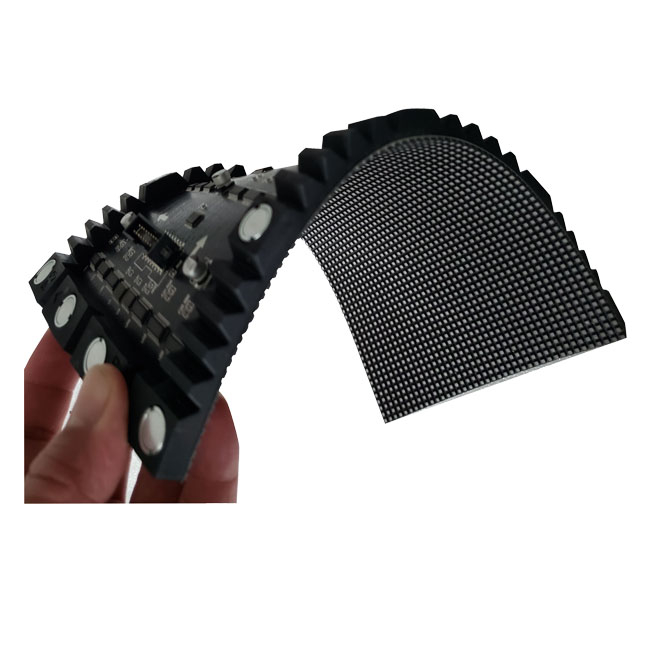

● Flexible LED Screen can be any designed forrolled, bend and swing
according to customers’ needs.
Availability:

sharethis sharing button

soft moduleFlexible led displayled soft led screen moduleWavy led wall

Pixel Pitch(mm)

P2

P2.5

P3

P4

P5

P6

P8

P10

Outdoor P4

LED Configuration

SMD 1010

SMD 1010

SMD 1515

SMD 2121

SMD 2121

SMD 3528

SMD 3528

SMD 3528

SMD 1921

Pixel Density(pixel/m2)

250000

160000

111111

62500

40000

27777

15625

10000

62500

Module Size(mm)

256*128

240*120*1.6

240*120*1.6

256*128

320*160*1.6

192*192*1.6

256*128*1.6

320*160*1.6

256*128

Module Resolution(dot)

128*64

96*48

80X40

64*32/60*60

64*32

32*32

32*16

32*16

64*32

Scan Mode

32S

24S

20S

16S

16S

8S

4S

4S

16S

Brightness(cd/m2)

≥700

800-1200

800-1200

800-1200

800-1200

800-1200

800-1200

800-1200

≥4500

Viewing Angle

120°

120°

120°

120°

120°

120°

120°

120°

120°

Environment

Indoor

Indoor

Indoor

Indoor

Indoor

Indoor

Indoor

Indoor

Outdoor

Brightness Adjustment

0-255 Levels adjustable

Control Mode

Synchronous display with control PC by DVI

Input Signal

Composite,S-Vido,component,VGA,DVI,HDMI,HD-SDI

Operating Voltage

AC100/24050/60HZ

Operating Temperature

-20℃~+60

Operating Humidity

1090%RH

Lifespan(h)

100,000hours
