HD Small Pitch VHD600 series

VHD0.9/VHD1.2/VHD1.3/VHD1.5/VHD1.6/VHD1.7/VHD1.8

●For 16:9 and 4:3 Aspect Ratio

●Fully Front Access for Wall Mounting

●High Color Fidelity and High Contrast Ratio Cable-less Connection

●Slim and Lightweight

●Each cabinet is 600mmx337.5mm 16:9 or 4:3 free options

●Available for any video formats


Availability:

digital display

Less Is More

Module, conversion card, and receiving card between panels are connected all through one connector of high stability. Thus, the panel presents a contracted and concise design style with no external cables.

digital display screen HD mini LED display

High refresh rate

The ingest screen is stable without ripples, flicker, clear picture, and good dynamic expression. It is more natural and natural to match the point-to-point output screen.

proHi_01 (1)

Sky 6D small room can display high refresh rate display effect,

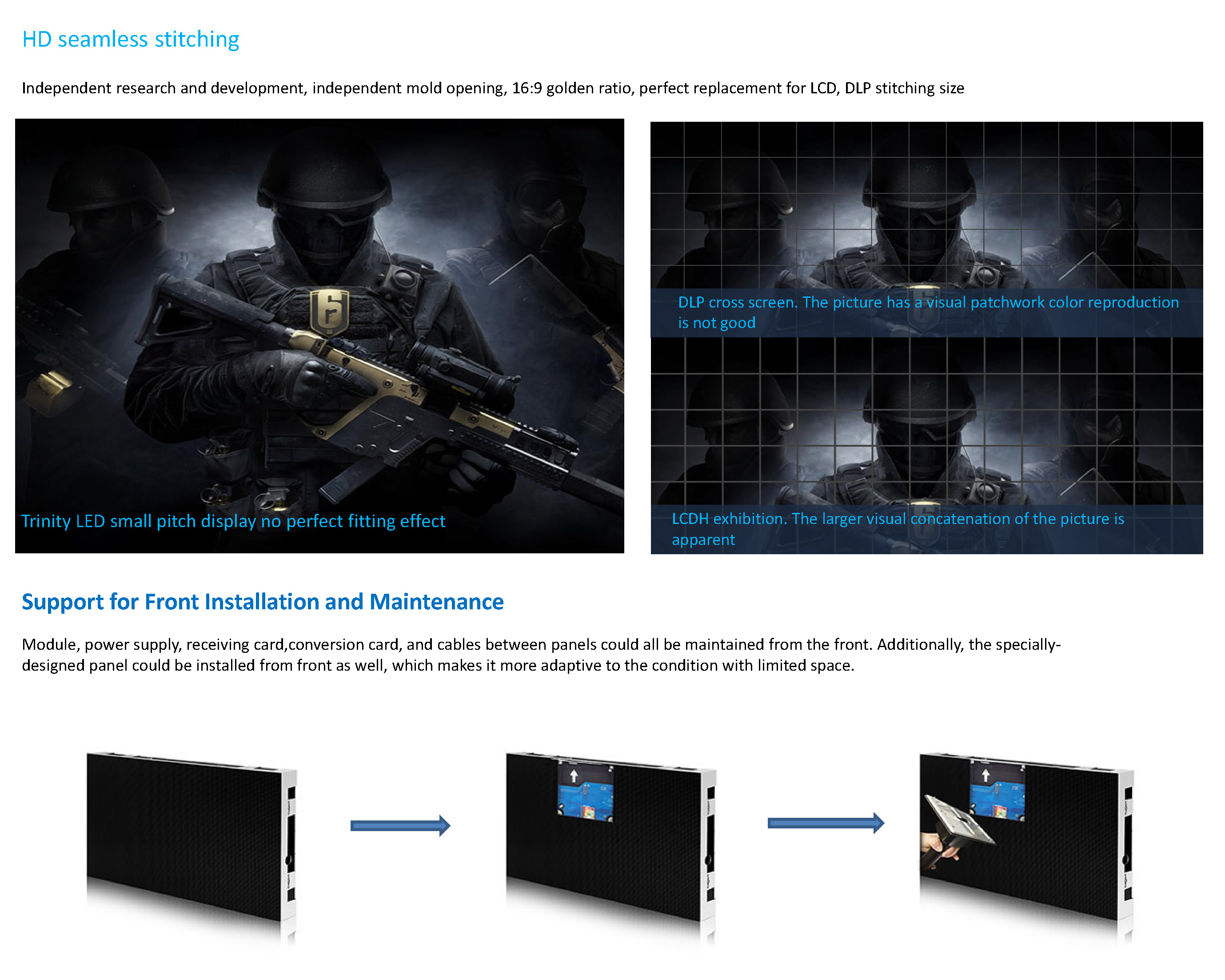

网站1_页面_2

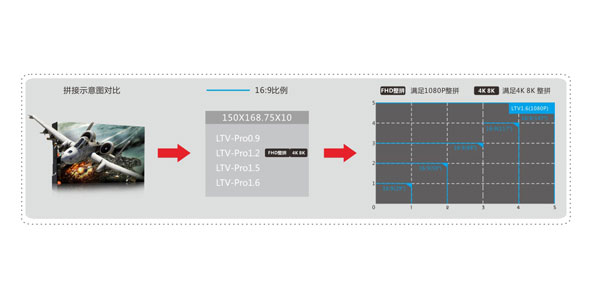

proLo_01

Module	VHD0.9	VHD1.2	VHD1.3	VHD1.5	VHD1.6	VHD1.7	VHD1.8
Pixel Pitch	0.9375 mm	1.25 mm	1.34 mm	1.56 mm	1.667mm	1.704mm	1.875 mm
Brightness	≤500 nits	≤550 nits	≤550 nits	≤650 nits	≤650 nits	≤650 nits	≤600 nits
Refresh Rate	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz
Driving Method	1/27 scan	1/27 scan	1/2 scan	1/27 scan	1/27 scan	1/27 scan	1/30 scan
Grey level	12/14bit	12/14bit	12/14bit	12/14bit	12/14bit	12/14bit	12/14bit
LED Type	SMD0808	SMD1010	SMD1010	SMD1010	SMD1010	SMD1515	SMD1515
IP Grade	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30
Power consumption(Max/Average)	380/126 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m
Cabinet
Module Size (mm)	150×168.75×10 mm
Cabinet Size(mm)	600×337.5×45 mm
Cabinet Material	Aluminium Profile
Cabinet weight(kg)	6.3KG	6.3KG	6.3KG	6.3KG	6.3KG	6.3KG	6.3KG
Cabinet resolution	640×360 Pixels	480×270 Pixels	448×252 Pixels	384×216 Pixels	360×202Pixels	352×198 Pixels	320×180 Pixels
Pixel density	1137777 Pixels/sq.m	640000 Pixels/sq.m	557511 Pixels/sq.m	409600 Pixels/sq.m	359111 Pixels/sq.m	344177 Pixels/sq.m	284444 Pixels/sq.m
Application environment
Input AC power voltage	100V-240V
Working temperature	-20℃~50℃
Working humidity	10%-95%RH
Signal type(with video processor)	AV, S-Video, VGA, DVI, HDMI, SDI, DP
Control distance	HSYV: <100m; SMF: <10km

Module	VHD0.9	VHD1.2	VHD1.3	VHD1.5	VHD1.6	VHD1.7	VHD1.8
Pixel Pitch	0.9375 mm	1.25 mm	1.34 mm	1.56 mm	1.667mm	1.704mm	1.875 mm
Brightness	≤500 nits	≤550 nits	≤550 nits	≤650 nits	≤650 nits	≤650 nits	≤600 nits
Refresh Rate	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz	1920/3840 Hz
Driving Method	1/27 scan	1/27 scan	1/2 scan	1/27 scan	1/27 scan	1/27 scan	1/30 scan
Grey level	12/14bit	12/14bit	12/14bit	12/14bit	12/14bit	12/14bit	12/14bit
LED Type	SMD0808	SMD1010	SMD1010	SMD1010	SMD1010	SMD1515	SMD1515
IP Grade	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30	IP30/IP30
Power consumption(Max/Average)	380/126 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m	520/173 W/sq.m
Cabinet
Module Size (mm)	150×168.75×10 mm
Cabinet Size(mm)	600×337.5×45 mm
Cabinet Material	Aluminium Profile
Cabinet weight(kg)	6.3KG	6.3KG	6.3KG	6.3KG	6.3KG	6.3KG	6.3KG
Cabinet resolution	640×360 Pixels	480×270 Pixels	448×252 Pixels	384×216 Pixels	360×202Pixels	352×198 Pixels	320×180 Pixels
Pixel density	1137777 Pixels/sq.m	640000 Pixels/sq.m	557511 Pixels/sq.m	409600 Pixels/sq.m	359111 Pixels/sq.m	344177 Pixels/sq.m	284444 Pixels/sq.m
Application environment
Input AC power voltage	100V-240V
Working temperature	-20℃~50℃
Working humidity	10%-95%RH
Signal type(with video processor)	AV, S-Video, VGA, DVI, HDMI, SDI, DP
Control distance	HSYV: <100m; SMF: <10km
