Outdoor Front Service VOF-II Iseries

P5.33/P6.67/P8/P10

● Ultra High Brightness

●High Refresh & High Contrast

● Lighter& Thinner

●Smart Monitoring

●Front & Rear Maintenance

TIM图片20190927172001 6369837468278172311659384

You are here: Home » Products » Fixed LED Display » Outdoor Fixed Series » Outdoor Front Service VOF-II Iseries

Welcome

VISUALLED-Build a platform for realizing your dreams and illuminate your beautiful life.

Mobile Phone

+86-13421812590

+86-0755-89814590

Leave a Message

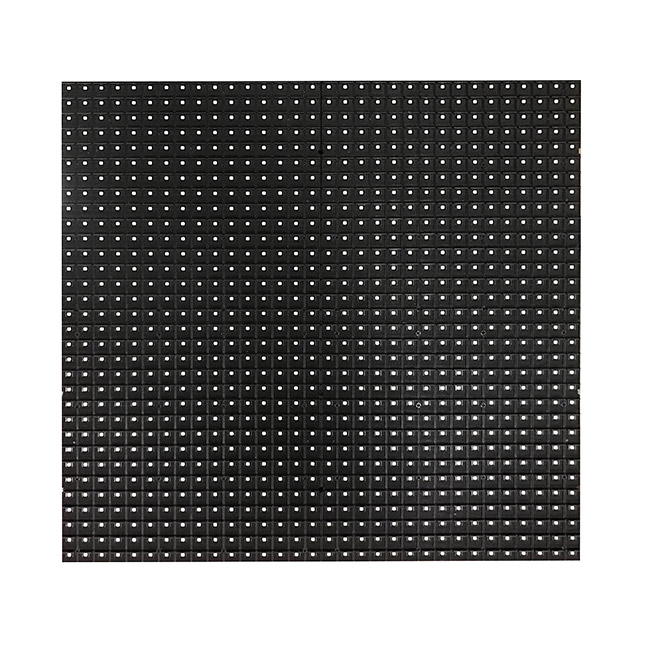

Module	VOF5	VOF6	VOF08	VOF10
Pixel Pitch	5.33 mm	6.667 mm	8 mm	10.66 mm
Brightness	≥6000 nits	≥6000 nits	≥6000 nits	≥6000 nits
Refresh Rate	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz
Grey level	14bit	14bit	14bit	14bit
Color Display	4.4 trillion	4.4 trillion	4.4 trillion	4.4 trillion
LED Type	SMD2727	SMD2727	SMD2727	SMD2727
IP Grade	IP65/IP54	IP65/IP54	IP67/IP65	IP67/IP65
Power consumption(Max/Average)	760/228 W/sq.m	760/228 W/sq.m	760/228 W/sq.m	760/228 W/sq.m
Cabinet
Module Size (mm)	320×320×18 mm	320×320×18 mm	320×320×18 mm	320×320×18 mm
Cabinet Size(mm)	960×960×104.5	960×960×104.5	960×960×104.5	960×960×104.5
Cabinet Material	Aluminium Profile
Cabinet weight(kg)	30 kg	35 kg	35 kg	35 kg
Cabinet resolution	168×168 Pixels	144×144 Pixels	120×120 Pixels	90×90 Pixels
Pixel density	320400 Pixels/Cabinet	20736 Pixels/Cabinet	14400 Pixels/Cabinet	8100 Pixels/Cabinet
Application environment
Input AC power voltage	100V-240V
Working temperature	-20℃~50℃
Working humidity	10%-95%RH
Signal type(with video processor)	AV, S-Video, VGA, DVI, HDMI, SDI, DP
Control distance	HSYV: <100m; SMF: <10km
