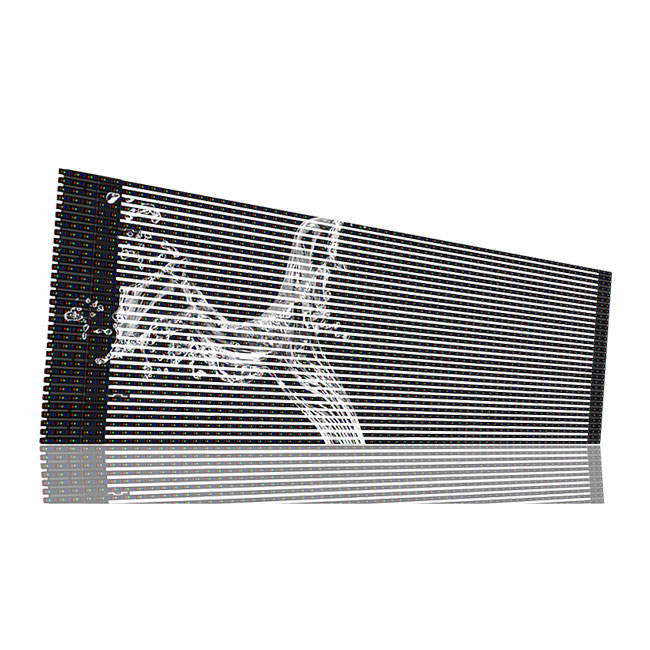

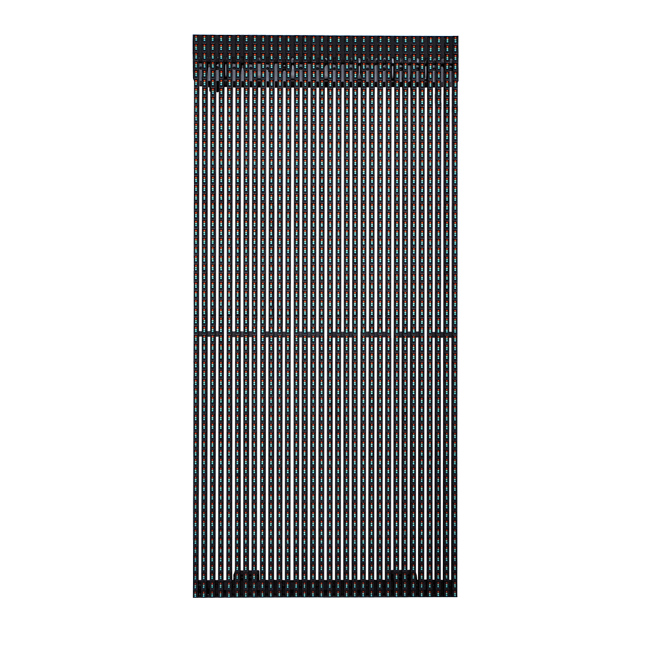

DIP Curtain LED Screen

P15.625-15.625/P25-25/P15.6-31.25/P31.25-31.25


High Transparency, High Brightness, Outdoor Curtain LED Display

● Ultra lightweight and slim

● High brightness for outdoor fixed installation

● High transparency
Availability:

sharethis sharing button

DIP

ModuleVDC15VDC25VDC31
Pixel config1R1G1B1R1G1B1R1G1B
LED lampDIP346DIP346DIP346
Pixel pitch15.625 mm25 mm31.25 mm
Strap stepCustomizable according to transmittance rate and budget
SizeL500*H1000 mmL520*H1200 mmL500*H1500 mm
No. of straps322016
Unit resolution32*64 pixels20*48 pixels16*48 pixels
Resolution4096 pixels/sqm1600 pixels/sqm1024 pixels/sqm
InstallationVertical/ Horizontal
Transmittance rate35%60%69%
Brightness≥8000 nit≥7000 nit≥7000 nit
Weight22 kg/㎡16 kg/㎡13 kg/㎡
Power dissipation400 w/㎡ (max)375 w/㎡ (max)300 w/㎡ (max)
Power dissipation130 w/㎡ (Avg.)125 w/㎡ (Avg.)100 w/㎡ (Avg.)
Viewing angleH120°/V60°H120°/V60°H120°/V60°
Ingress protectionIP67IP67IP67
Driving methodStaticStaticStatic
Working temperature-40~60 ℃-40~60 ℃-40~60 ℃
Input voltageAC110-220VAC110-220VAC110-220V
Gray-scale16 bits16 bits16 bits
