Availability: | |
---|---|
| |

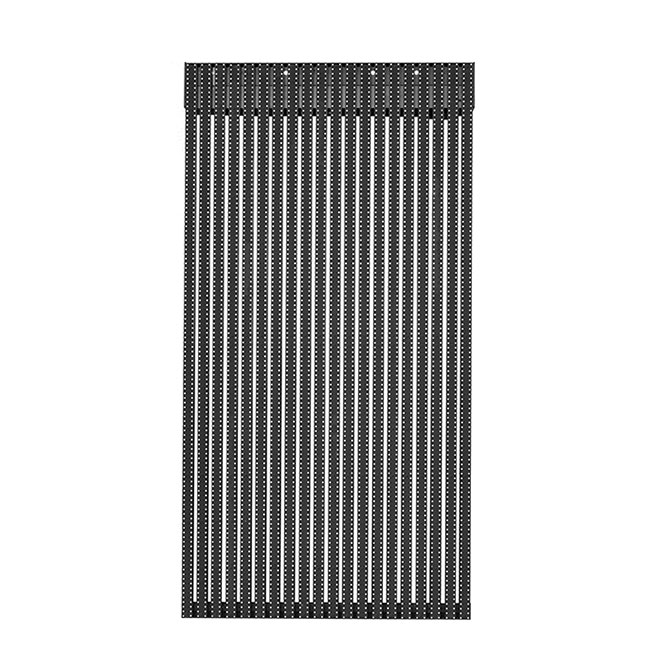

Module | unit | VSC8 | VSC15 |
Product number | p12.5-8.33 | P15.625 | |
Pixel composition | SMD | 2727 | 2727 |
Resolution | Dot/m2 | 9600 | 4096 |
Horizontal points | Dot | 40 | 40 |
Vertical points | Dot | 120 | 120 |
Horizontal spacing | Mm | 12.5 | 12.5 |
Vertical spacing | Mm | 8.33 | 15.625 |
Unit size | Mm | 1000(H)X500(W) | 1000(H)X500(W) |
Unit points | Dot | 4800 | 2048 |
Gray level | Bit | 14 | 14 |
Screen brightness | Cd/m2 | ≥6000cd | ≥7000cd |
Contrast | 1.152777778 | 1.152777778 | |
Color temperature | K | 6500-9300k | 6500-9300k |
Brightness adjustment | Lossless grayscale | 5% to 100% | 5% to 100% |
Horizontal viewing angle | Degree ° | ≥120° | ≥120° |
Vertical viewing angle | degree | ≥120° | ≥60° |
Optimum line of sight | m | 8-150 | 20-200 |
Peak power consumption | W/㎡ | 750 | 450 |
Average power consumption | W/㎡ | 280 | 130 |
Unit weight | kg/pcs | 10.5 | 10.5 |
product weight | kg/㎡ | 21 | 18 |
Box thickness | mm | 65 | 70 |
Refresh rate | Hz | ≥1920 | ≥2000 |
Frame change rate | Hz | 60 | 60 |
control method | Synchronous mapping | Synchronous mapping | |
Drive device | MBI | 16-bit serial 5120GM | 16-bit serial 5120GM |
Drive mode | Constant current static | Constant current static | |
Display mode | 1920*1080 | 1920*1080 | |
Supply voltage | AC | 175V-245V | 175V-245V |
Design life | =100,000 hours | =100,000 hours | |
Heat dissipation method | Structure-enhanced natural convection | Structure-enhanced natural convection | |
Light bar structure | Single row, single row, vertical | Single row, single row, vertical | |
Light bar width | mm | 19 | 19 |
Light strip material | 6061 stretched aluminum | 6061 stretched aluminum | |
Shortage rate | % | 26% | 26% |
Protection level | IP | Double-sided overall IP67 | Double-sided overall IP67 |
EMC | Conduction Emission EN55022 CLASS-A、Harmonic Current IEC61000-3-2 Class-A | ||
Seismic resistance | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||
Wind resistance rating | Level 12 | Level 12 | |
The scope of work | m | Altitude 0-5000m | Altitude 0-5000m |
Shell material | Environmental alloy | Environmental alloy | |
Frame material | 2.0mm cold rolled galvanized steel sheet | 2.0mm cold rolled galvanized steel sheet | |
Device level | All solid state wide temperature industrial grade | All solid state wide temperature industrial grade | |
MTBF | >=5000H | >=5000H | |

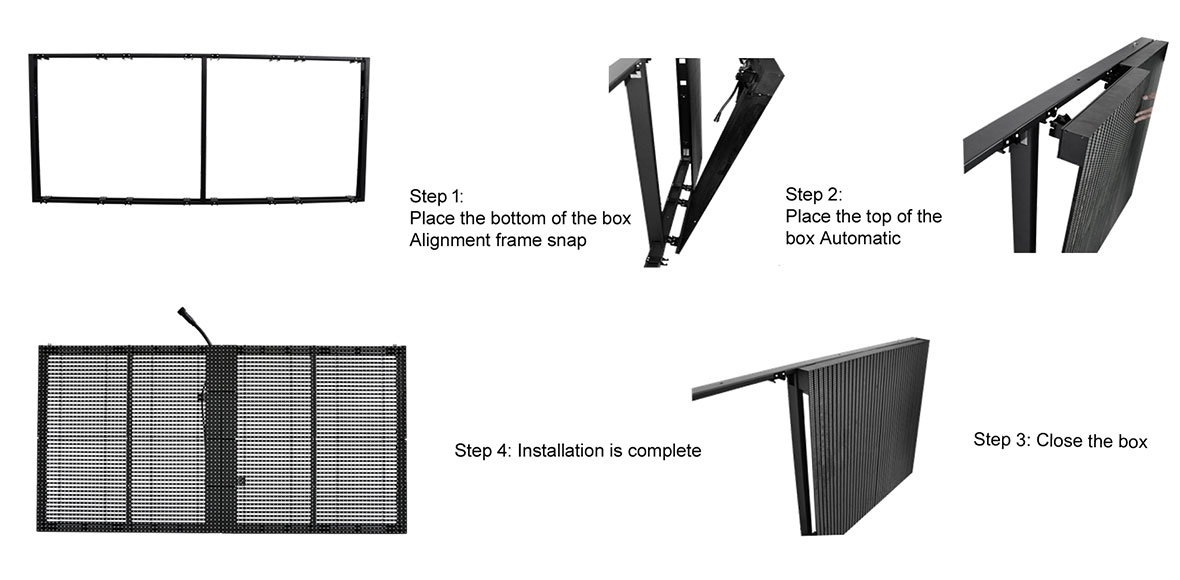

Installation form | Tool-free quick installation | Tool-free quick installation | |
Fire Safety | 5S / unit quick removal | 5S / unit quick removal | |
Fire performance | Full V0 flame retardant | Full V0 flame retardant | |
Maintenance speed | 10S/unit | 10S/unit | |
Maintenance method | front back | front back |
