| Availability: | |
|---|---|
|
| |
| MODEL | VDF5 | VDF6 |
| Point spacing | 5.2 | 6.25 |
| pixel | 36864dots/m2 | 25,600 pixels/sqm |
| LED light | SMD1921 | SMD1921 |
| Module size | 250mm×250mm | 250*250 |
| Module resolution | 48*48 | 40*40 pixels |
| scanning method | 6 scan | |
| Box parameter | ||
| Box size | 500mm×500mm | 500*500*57 mm |
| Screen thickness | 80mm | 75MM |

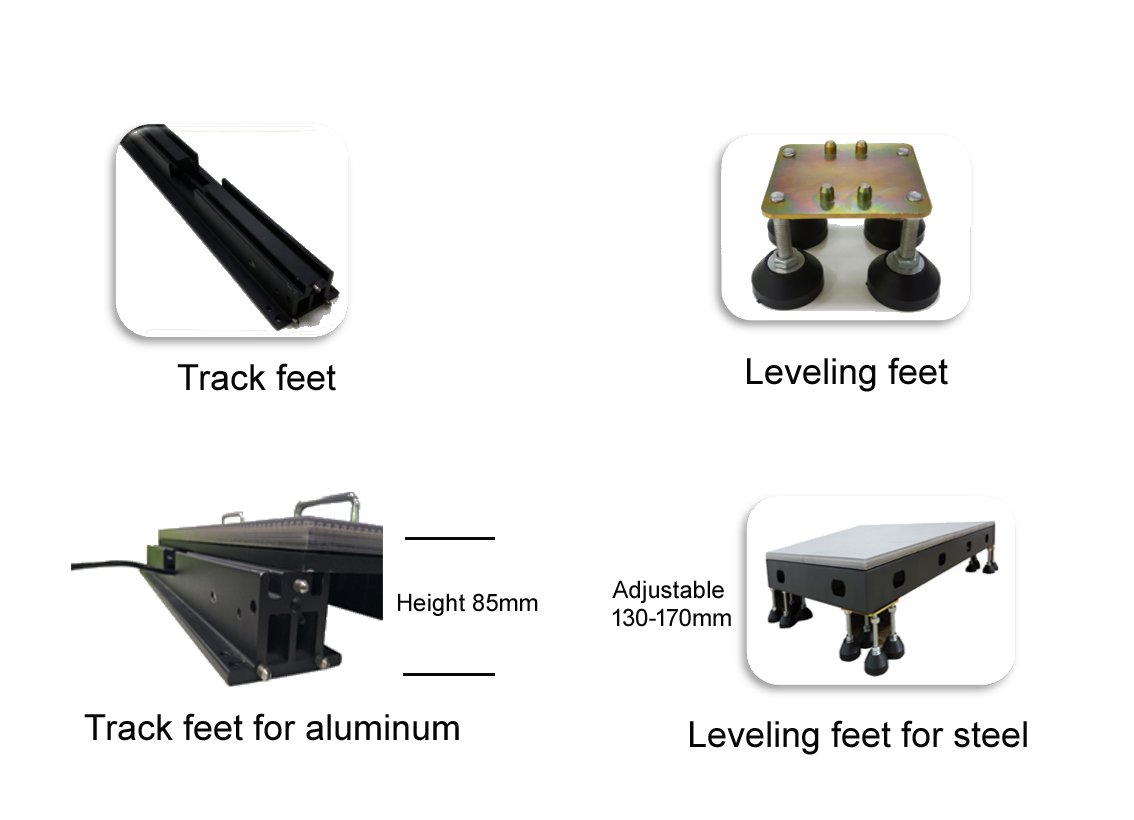

| Track specification | 50 (height) mm*85 (width) mm | 500*500*57 mm |
| Box weight | 10.5kg/pc | 9KG |
| brightness | 2300cd/m2 | 2800cd/m2 |
| Contrast | 1900/3/23 8:01 | 1900/3/23 8:01 |
| Viewing angle | 140° (horz.), 140° (vert.) | 140° (horz.), 140° (vert. |
| Gray level | ≥14(bit) | ≥14(bit) |
| Maximum power | 800W/m2 | 800W/m2 |
| Average power | 320 W | 320 W |
| Operating Voltage | AC90-260V | AC90-260V |
| Frame rate | 50Hz-75Hz | 50Hz-75Hz |
| Refresh rate | ≥1920Hz | 1920HZ |
| Brightness adjustment | 0-100% | 0-100% |
| Gamma correction | ( 1 -- 4 ) | ( 1 -- 4 ) |
| Color temperature | 6500-9000K | 6500-9000K |
| control method | Synchronize display and control plan computer through DVI | Synchronize display and control plan computer through DVI |
| Control distance | Super five types of cable: 100m, multimode fiber: 500m, single mode fiber: 15km | Super five types of cable: 100m, multimode fiber: 500m, single mode fiber: 15km |
| Storage temperature | (-40°C～+85°C) | (-40°C～+85°C) |
| Operating temperature | (-30 ° C ~ +45 ° C) | (-30 ° C ~ +45 ° C) |
| Working humidity | 10-90% RH | 10-90% RH |
| life | 100,000Hours | 100,000Hours |
| Mean time between failures | 5000Hours | 5000Hours |
| Protection level | IP43 | IP43 |
| Screen flatness | ≦1mm | ≦1mm |
| Out of control point ratio | 0.00001 | 0.00001 |
| Withstand gravity | 2000 (Kg/m2) | 2000 (Kg/m2) |
| Radian angle | 0° | 0° |
| MODEL | VDF5 | VDF6 |
| Point spacing | 5.2 | 6.25 |
| pixel | 36864dots/m2 | 25,600 pixels/sqm |
| LED light | SMD1921 | SMD1921 |
| Module size | 250mm×250mm | 250*250 |
| Module resolution | 48*48 | 40*40 pixels |
| scanning method | 6 scan | |
| Box parameter | ||
| Box size | 500mm×500mm | 500*500*57 mm |
| Screen thickness | 80mm | 75MM |
| Track specification | 50 (height) mm*85 (width) mm | 500*500*57 mm |
| Box weight | 10.5kg/pc | 9KG |
| brightness | 2300cd/m2 | 2800cd/m2 |
| Contrast | 1900/3/23 8:01 | 1900/3/23 8:01 |
| Viewing angle | 140° (horz.), 140° (vert.) | 140° (horz.), 140° (vert. |
| Gray level | ≥14(bit) | ≥14(bit) |
| Maximum power | 800W/m2 | 800W/m2 |
| Average power | 320 W | 320 W |
| Operating Voltage | AC90-260V | AC90-260V |
| Frame rate | 50Hz-75Hz | 50Hz-75Hz |
| Refresh rate | ≥1920Hz | 1920HZ |
| Brightness adjustment | 0-100% | 0-100% |
| Gamma correction | ( 1 -- 4 ) | ( 1 -- 4 ) |
| Color temperature | 6500-9000K | 6500-9000K |
| control method | Synchronize display and control plan computer through DVI | Synchronize display and control plan computer through DVI |
| Control distance | Super five types of cable: 100m, multimode fiber: 500m, single mode fiber: 15km | Super five types of cable: 100m, multimode fiber: 500m, single mode fiber: 15km |
| Storage temperature | (-40°C～+85°C) | (-40°C～+85°C) |
| Operating temperature | (-30 ° C ~ +45 ° C) | (-30 ° C ~ +45 ° C) |
| Working humidity | 10-90% RH | 10-90% RH |
| life | 100,000Hours | 100,000Hours |
| Mean time between failures | 5000Hours | 5000Hours |
| Protection level | IP43 | IP43 |
| Screen flatness | ≦1mm | ≦1mm |
| Out of control point ratio | 0.00001 | 0.00001 |
| Withstand gravity | 2000 (Kg/m2) | 2000 (Kg/m2) |
| Radian angle | 0° | 0° |
