Availability: | |
---|---|
| |
MODEL | VDF3.9 | VDF5 | VDF6 |
Point spacing | 3.91 | 5.2 | 6.25 |
pixel | 65536 | 36864dots/m2 | 25,600 pixels/sqm |
LED light | SMD1921 | SMD1921 | SMD1921 |

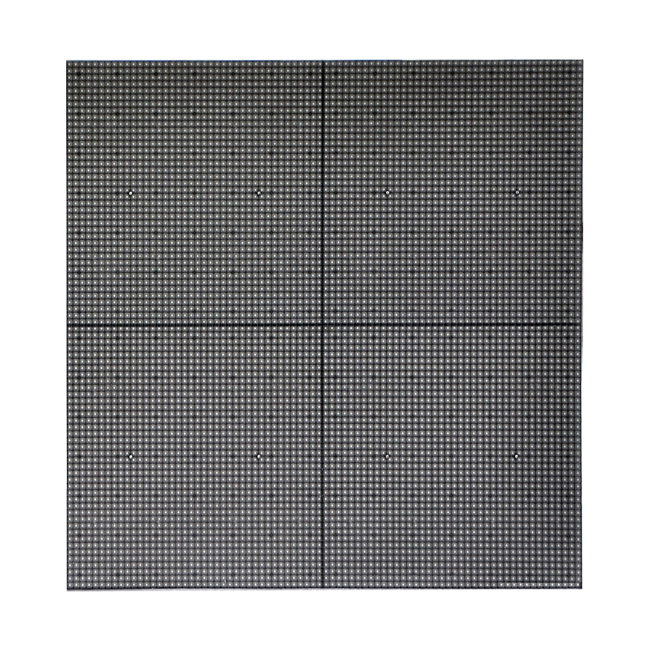

Module size | 250mm×250mm | 250*250 | |
Module resolution | 64*64 | 48*48 | 40*40 pixels |
scanning method | 16SCAN | 12SCAN | 10SCAN |
Box parameter | |||
Box size | 500*500 | 500mm×500mm | 500*500*57 mm |
Screen thickness | 80MM | 80mm | 80MM |
Track specification | 500*500*57 mm | 500*500*57 mm | 500*500*57 mm |
Box weight | 10.5kg/pc | ||
brightness | 2000nits | ||
Contrast | 1900/3/23 8:01 | ||
Viewing angle | 140° (horz.), 140° (vert.) | ||
Gray level | ≥14(bit) | ||
Maximum power | 800W/m2 | ||
Average power | 320 W | ||
Operating Voltage | AC90-260V | ||
Frame rate | 50Hz-75Hz | ||
Refresh rate | ≥1920Hz | ||
Brightness adjustment | 0-100% | ||
Gamma correction | ( 1 -- 4 ) | ||
Color temperature | 6500-9000K | ||
control method | Synchronize display and control plan computer through DVI | ||
Control distance | Super five types of cable: 100m, multimode fiber: 500m, single mode fiber: 15km | ||
Storage temperature | (-40°C~+85°C) | ||
Operating temperature | (-30 ° C ~ +45 ° C) | ||
Working humidity | 10-90% RH | ||
life | 100,000Hours | ||
Mean time between failures | 5000Hours | ||
Protection level | IP43 | ||
Screen flatness | ≦1mm | ||
Out of control point ratio | 0.00001 | ||
Withstand gravity | 2000 (Kg/m2) | ||
Radian angle | 0° |
