| Availability: | |
|---|---|
|
| |
| Model | VIF2.6 | VIF3.9 |

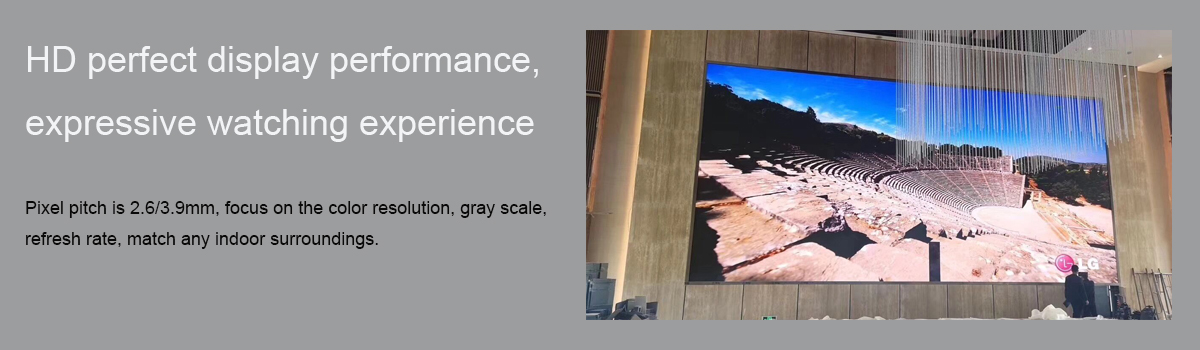

| Pixel Pitch mm | 2.6 | 3.91 |
| Brightness nit | 300-800 | 300-800 |
| Refresh rate Hz | 1920 | 1920 |
| Grey scale bit | 14 | 14 |
| Colors Trillion | 4.4 | 4.4 |
| View angle(horizontal/vertical) | 160°/120° | 160°/120° |
| IP Rating(front/back) | IP30 | IP30 |
| Power Comsumption(Max/Aver.) W/ ㎡ | 465/115 | 465/115 |

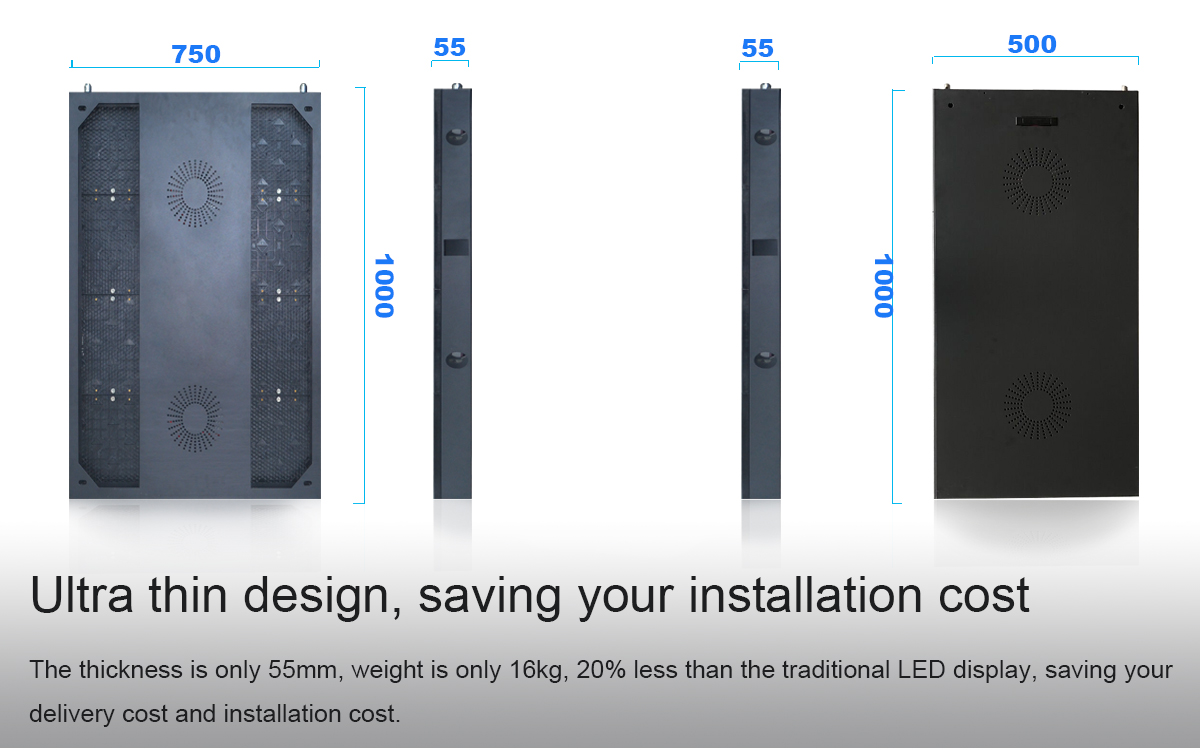

| Cabinet size mm | 500X1000X55/750X1000X55 | 500X1000X55/750X1000X55 |
| Cabinet Weight kg | 10.5/16KG | 10.5/16KG |
| Cabinet Material | Iron | Iron |
| Module Dimension mm | 250X250X17 | 250X250X17 |
| Cabinet Resolution Pixels | 192X384/288X352 | 192X256 |
| Pixel Density Pixels/ ㎡ | 147456 | 65536 |
| Input A/C(Voltage) | 100~240 | 100~240 |
| Operating Temperature/℃ | -20~50 | -20~50 |
| Operating Humidity | 10%~95% | 10%~95% |
| Signal Type(with video processor) | DVI、HDMI | |
| Control Distance | Cat-5 Lan cable:<1000m;single-mode fiber cable:<10kilometer | |
| Model | VIF2.6 | VIF3.9 |
| Pixel Pitch mm | 2.6 | 3.91 |
| Brightness nit | 300-800 | 300-800 |
| Refresh rate Hz | 1920 | 1920 |
| Grey scale bit | 14 | 14 |
| Colors Trillion | 4.4 | 4.4 |
| View angle(horizontal/vertical) | 160°/120° | 160°/120° |
| IP Rating(front/back) | IP30 | IP30 |
| Power Comsumption(Max/Aver.) W/ ㎡ | 465/115 | 465/115 |
| Cabinet size mm | 500X1000X55/750X1000X55 | 500X1000X55/750X1000X55 |
| Cabinet Weight kg | 10.5/16KG | 10.5/16KG |
| Cabinet Material | Iron | Iron |
| Module Dimension mm | 250X250X17 | 250X250X17 |
| Cabinet Resolution Pixels | 192X384/288X352 | 192X256 |
| Pixel Density Pixels/ ㎡ | 147456 | 65536 |
| Input A/C(Voltage) | 100~240 | 100~240 |
| Operating Temperature/℃ | -20~50 | -20~50 |
| Operating Humidity | 10%~95% | 10%~95% |
| Signal Type(with video processor) | DVI、HDMI | |
| Control Distance | Cat-5 Lan cable:<1000m;single-mode fiber cable:<10kilometer | |
