| Module | VOR HR3.9 | VOR HR4.8 | VOR HR5.6 |
| Pixel Pitch | 3.9 mm | 4.8 mm | 5.68mm |
| Brightness | 4500nits | 4500 nits | 4500nits |
| Refresh Rate | 1920/3840 Hz | 1920/3840 Hz | 1920/3840 Hz |
| Driving Method | 1/16scan | 1/13Scan | 1/11Scan |
| Grey level | 13 bit | 13 bit | 13 bit |
| LED Type | SMD1921 | SMD2525 | SMD2525 |
| IP Grade | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Power consumption(Max/Average) | 640/250W/sq.m | 500/208 W/sq.m | 528/1212 W/sq.m |
| Cabinet | |||
| Module Size (mm) | 250×250mm | ||

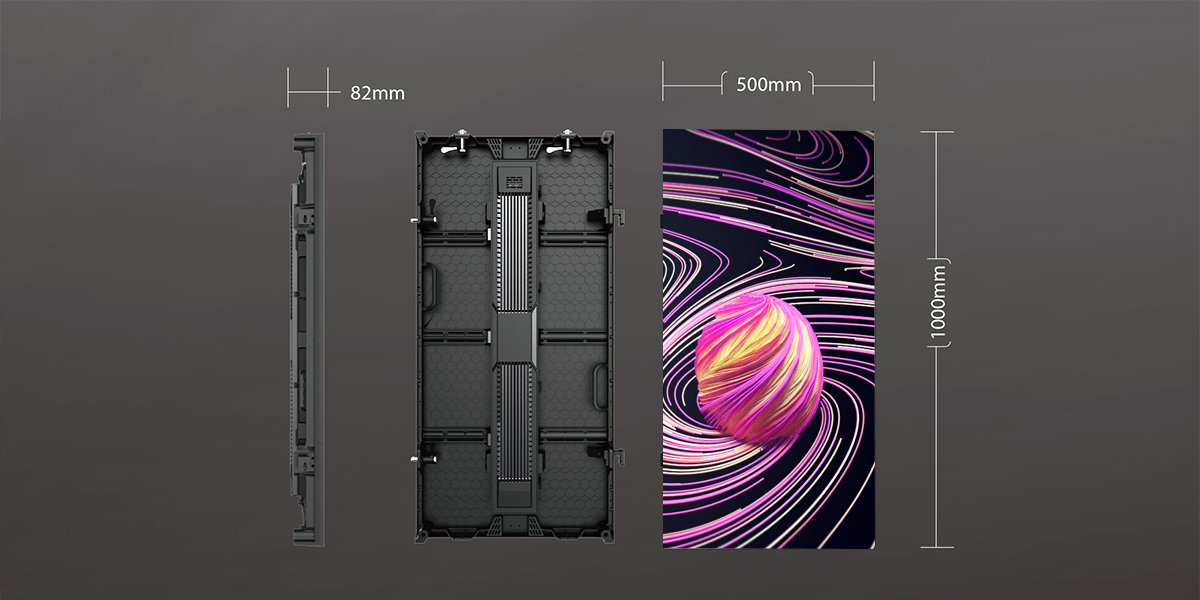

| Cabinet Size(mm) | 500×500×75 mm | ||
| 500×1000×75 mm | |||

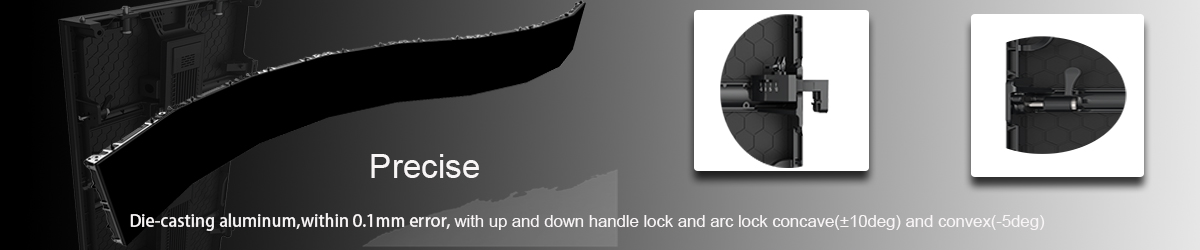

| Cabinet Material | ADC12 | ||
| Cabinet weight(kg) | 8 kg/14kg | ||
| Cabinet resolution | 128×256 Pixels | 104×208 Pixels | 88×176Pixels |
| Application environment | |||
| Input AC power voltage | 110V-240V | ||
| Working temperature | -20℃~50℃ | ||
| Working humidity | 10%-95% | ||
| Signal type(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP | ||
| Control distance | cat-5Lan cable:<1000m;single-mode fiber cable:<10kilometer | ||
